Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment

Brand Name : HAIDA

Place of Origin : Guangdong, China

MOQ : 1

Internal dimensions : 400*500*500mm

External dimensions : 600*1080*1380mm

Working capacity : 100 liter

Temperature range : -70℃~+180℃

Humidity range : 10%~98%RH

Temperature fluctuation : ±1C

Humidity fluctuation : ±2.5%RH

Humidity uniformity : 3%RH

Internal material : SUS#304 stainless steel, mirror finished

External material : Stainless steel with paint spray

Sample tray : SUS#304 stainless steel, 2pcs

Observation window : Tempered glass: 250*300mm

Testing hole : Diameter 50mm

Power supply : Three-phase, 380V, 50Hz

Noise level : 80 dBA

Contact Now

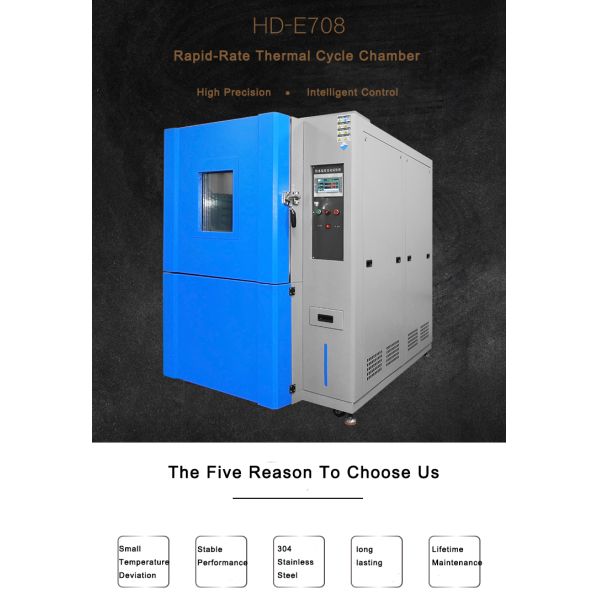

Intelligent Control Environment Rapid-rate Thermal Cycle Test Chamber
The Rapid-rate Thermal Cycle Test Chamber is designed for specimen testing requiring rapid temperature changes. It evaluates thermal mechanical property failures and features temperature rates up to 20°C/min, simulating real-world application environments through fast ramp rates.
Standard Chamber Specifications
Item Specification
Internal dimension (W*D*H) 400*500*500mm
External dimension (W*D*H) 600*1080*1380mm
Working capacity 100 liter
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray
Temperature range -70℃~+180℃
Temperature fluctuation ±1℃
Humidity range 10%~98%RH
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Sample tray SUS#304 stainless steel, 2pcs
Observation window Tempered glass: 250*300mm
Testing hole Diameter 50mm, for cable routing
Power supply source Three-phase, 380V, 50Hz
Safety protection device Protection for leakage, Over-temperature, Compressor over-voltage and overload, Heater short circuit
Key Features
  • Cable ports on left side for easy specimen wiring and measurement
  • Door equipped with hinges to prevent auto-closing
  • Designed to comply with major environmental test standards (IEC, JEDEC, SAE)
  • High performance with quiet operation (80 dBA)

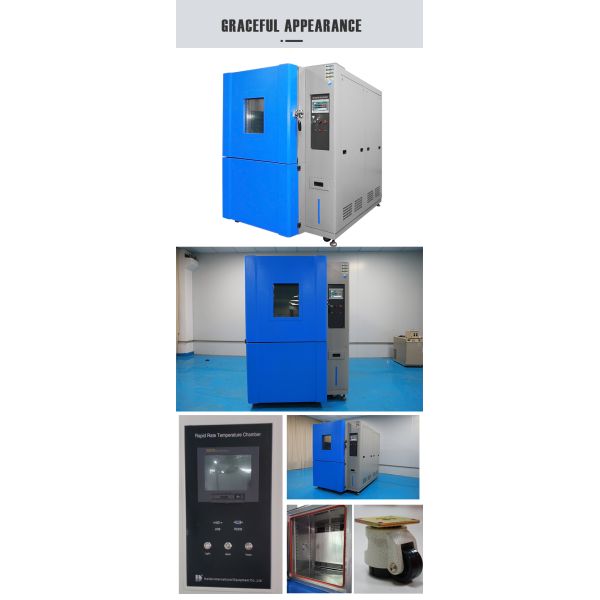

Product Images
Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 15 years of experience. Our products serve various industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, electronics, plastic and rubber products, and are used by scientific research units, quality inspection institutions, and academic fields.
Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment
Quality Control
Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment
Packaging & Shipping
Equipment is protected with air bubble film and securely packaged in wooden cases for safe shipping.
Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment
Our Services
Equipment Service
We provide prompt support with responses within 48 hours and solutions within 3 working days. Includes operation videos, English manuals, and video conferencing support.
Onsite Service
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment upkeep
Additional Support
  • Free technical training for factory visits
  • 24-hour online contact
  • Free software upgrades
  • Comprehensive documentation including product instructions, operation videos, and test reports
Problem Resolution
  • 24-hour social media communication
  • Seamless email support
  • Video conferencing assistance
  • Onsite technical service
Intelligent Control Enviroment Rapid-rate Thermal Cycle Test Chamber Temperature Variation Testing Equipment
